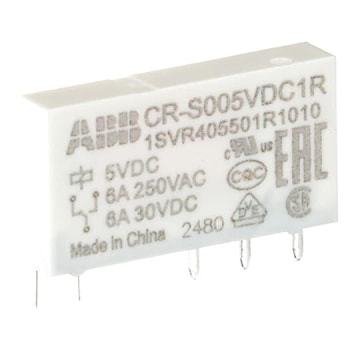

ABB 1SVR405501R1010 CR-S005VDC1R Slim Pluggable Interface Relay

Price $13.25 / EA
Inventory
Available for delivery
Available for pick up at Abbotsford
Qty EA
Manufacturer:ABB
Manufacturer #:1SVR405501R1010

Description

The CR-S005VDC1R is a slim pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 05 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A.This slim pluggable interface relays may be used for electrical isolation, amplification and signal matching. The CR-S relays are 6.2 mm wide and therefore allow for the switching of high currents on a small footprint. Moreover, CR-S relays are UL 94-V0 certified, improving safety by providing high levels flame retardation. Screw and spring sockets, jumper bars and markers are available as accessories.

Specifications

Brand Name ABB Item Name Pluggable Interface Relay
Voltage Rating 5 VDC, 250 V Contact Configuration SPDT
Terminal Connection Quick Connect Amperage Rating 6 A
Contact Material Silver Tin Oxide Resistance 147 O
Dimensions 5 mm W x 28 mm D x 15 mm H Degree of Protection IP20
Temperature Rating -40 to 85 °C Standards CAN/CSA C22.2 No.14, IEC/EN 61810-1, UL 508
UPC 888614262737

Packages

1 - UNIT - 1
