hofa12108chfl

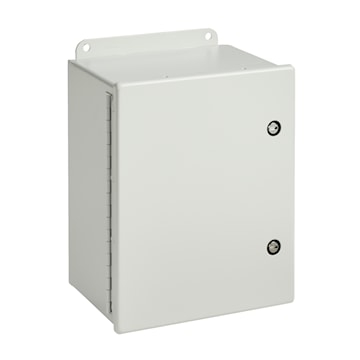

HOFFMAN 12 inch x 10 inch x 8 inch Junction Box Continuous Hinge with Quarter-Turn Fast Latch Type 4, Light Gray
hofa12108chfl
HOFFMAN 12 inch x 10 inch x 8 inch Junction Box Continuous Hinge with Quarter-Turn Fast Latch Type 4, Light Gray
Price
$403.70
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:HOFFMAN
Manufacturer #:A12108CHFL
Description
Continuous-hinge with quarter-turn fast latch type 4 junction box with screw-driver slot for easy access, Seamless foam-in-place gasket, 14 gauge steel, Bonding provision on door, External wall-mounting brackets, Oil-resistant gasket, Easy-to-maintain.
Seams continuously welded and ground smooth
Continuous hinge
Bonding provision on door
External welded-on mounting brackets for easy installation
Oil-resistant gasket
Quarter-turn slotted latches
Seamless foam-in-place gasket
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hoffman |
| Item Name | Junction Box | Type | Two Lock, Single Door |
| Width | 254 mm | Depth | 203 mm |
| Height | 305 mm | Cover Type | Continuous Hinged with Quarter-Turn Fast Latch |
| Gauge | 14 and 16 | NEMA Rating | NEMA/EEMAC Type 4, 12, IP66 |
| Mounting Type | Wall | Material | Steel |
| Finish | Powder Coated | Color | 7035 Light Gray |
| Standards | cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No. 94, IEC 60529 | Application | Controls and Drives |
| UPC | 783510148867 |
Packages
| 1 - UNIT - 1 | 2 - UNIT - 2 |
