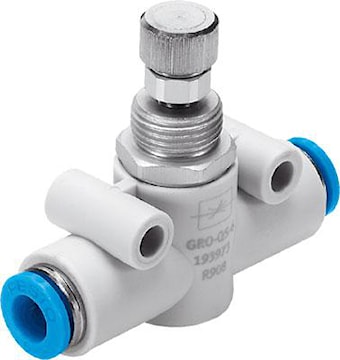

FESTO INC 193972 GRO-QS-4 flow control valve

Price $54.74 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Solutions
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:FESTO INC
Manufacturer #:193972
Documents Documents

Description

flow control valve GRO-QS-4 without non-return function Valve function=Throttle function, Pneumatic connection, port 1=QS-4, Pneumatic connection, port 2=QS-4, Adjusting element=Knurled screw, Mounting type=(* Front panel installation, * with through hole, * with accessories, * Optional)

Specifications

Brand Name Festo Item Name Compressed Air Flow Control Valve
Pressure Rating 0 - 10 bar Body Material Reinforced Polyamide
Series/Model GRO Nominal Size QS-4
Flow Rate 110 l/min Trim Material Galvanized Steel
Softgoods Material NBR Dimensions 42.4 mm L x 14 mm W x 41.5 mm H
Temperature Rating -10 to 60 °C Standards RoHS Compliant, VDMA24364-B1/B2-L

Packages

1 - UNIT - 1
