fesms6dl12
fesms6dl12

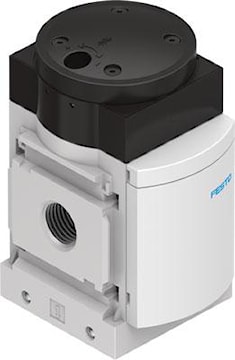

FESTO INC 529817 MS6-DL-1/2 soft-start valve

Price $195.06 / EA
Inventory
Available for delivery
Unavailable for pick up Abbotsford
  • Solutions
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:FESTO INC
Manufacturer #:529817
Documents Documents

Description

soft-start valve MS6-DL-1/2 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat

Specifications

Brand Name Festo Item Name Compressed Air Soft Start Valve
Type 2-Position, 2-Way Pressure Rating 4 - 18 bar
Body Material Die-Cast Aluminum Series/Model MS
Nominal Size 6 mm Actuator Pneumatic
Flow Rate 6450 l/min Softgoods Material NBR
Dimensions 79 mm W Temperature Rating -10 to 60 °C
Standards RoHS Compliant

Packages

1 - UNIT - 1
