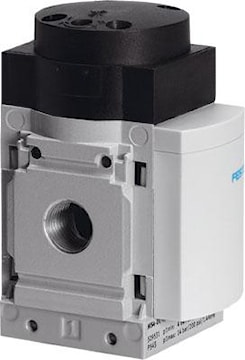

FESTO INC 532024 MS6N-DL-1/2 soft-start valve

Price $229.78 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Solutions
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:FESTO INC
Manufacturer #:532024
Documents Documents

Description

soft-start valve MS6N-DL-1/2 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat

Specifications

Brand Name Festo Item Name Compressed Air Soft Start Valve
Type 2-Position, 2-Way Connection Type NPT
Pressure Rating 4 - 18 bar Body Material Die-Cast Aluminum
Series/Model MS Nominal Size 1/2 in
Actuator Pneumatic Flow Rate 6450 l/min
Softgoods Material NBR Dimensions 2.99 in L x 2.44 in W x 4.57 in H
Temperature Rating -10 to 60 °C Standards RoHS Compliant, VDMA24364-B2-L

Packages

1 - UNIT - 1
