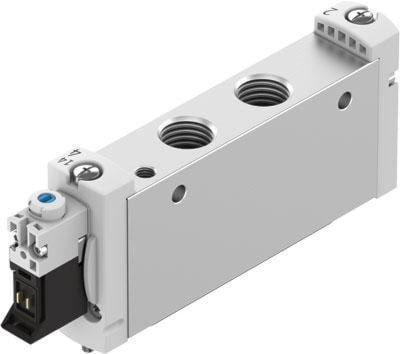

FESTO INC 574429 VUVG-L18-M52-MT-G14-1P3 solenoid valve

Price $143.72 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:FESTO INC
Manufacturer #:574429
Documents Documents

Description

solenoid valve VUVG-L18-M52-MT-G14-1P3 Valve function=5/2 monostable, Type of actuation=electrical, Valve size=18 mm, Standard nominal flow rate=1300 l/min, Operating pressure MPa=0,3 - 0,8 MPa

Specifications

Brand Name Festo Item Name Compressed Air Solenoid Valve
Type 2-Position, 5-Way Pressure Rating 3 - 8 bar
Body Material Wrought Aluminum Alloy Series/Model VUVG
Nominal Size G1/4 Actuator Electrical
Flow Rate 1300 l/min Trim Material Wrought Aluminum Alloy
Softgoods Material HNBR/NBR Finish Anodized
Dimensions 129.4 mm L x 18.3 mm W x 43.1 mm H Temperature Rating -5 to 60 °C
Standards cULus Listed, RoHS Compliant

Packages

1 - UNIT - 1
