fesqsf186b100

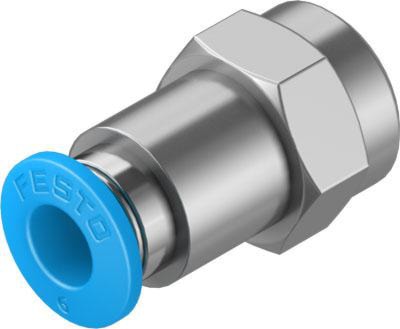

FESTO INC 130710 QSF-1/8-6-B-100 push-in fitting
fesqsf186b100
FESTO INC 130710 QSF-1/8-6-B-100 push-in fitting
Price
$3.18
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:FESTO INC
Manufacturer #:130710
Description
push-in fitting QSF-1/8-6-B-100 female thread with external hexagon. Size=Standard, Nominal size=5 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=100
Specifications
| Brand Name | Festo | Item Name | Push-In Fitting with External Hexagon |
| Type | Standard, Straight | Dimensions | 5 mm dia x 26 mm L |
| Material | Brass | Size | G1/8 x 6 mm |
| Connection | FNPT x Tube | Pressure Rating | -13.775 to 87 lb/in² |
| Temperature Rating | -10 to 80 °C | Finish | Blue/Nickel-Plated |
| Standards | ISO 8573-1:2010, RoHS Compliant |
Packages
| 100 - UNIT - (100) |
