nuhf1809
NVENT THERMAL 72 inch x 36 inch 1.8Amp 216W 67Ohms 18sq.ft 120V F1809 Standard Floor Heating Mat
nuhf1809
NVENT THERMAL 72 inch x 36 inch 1.8Amp 216W 67Ohms 18sq.ft 120V F1809 Standard Floor Heating Mat
Price
$366.05
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:NVENT THERMAL
Manufacturer #:F1809
Description

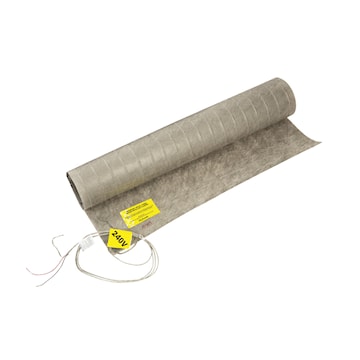

Nuheat fiber mat made of copper/copper alloy heating wire insulated with ETFE and surrounded with protective stainless steel ground shield. Heating wire sandwiched completely in the material requires thinset mortar under mat to attach to floor. 25 year manufacturer warranty.
Easy installation: various sizes so no need to configure heating wires during installation
Only 1/8" thick
Suitable for use under tile, stone, laminate and engineered wood floors
12 W/ft² heat output
Reliable during long life: 25 year product and total care warranty available, no maintenance required
Specifications
| Brand Name | nVent NUHEAT | Sub Brand | RAYCHEM |
| Item Name | Heating Mat | Type | Standard, Pre-Built, Electric |
| Width | 36 in | Length | 72 in |
| Thickness | 1/8 in | Coverage | 18 ft² |
| Voltage Rating | 120 V | Amperage Rating | 1.8 A |
| Wattage | 216 W | Cord Size | 18 AWG |
| Cord Length | 10 ft | Heating Cable Spacing | 2 in |
| Temperature Rating | 194 °F Maximum Exposure, 50 °F Minimum Installation | Mounting Type | Floor |
| Material | Fabric with Tinned Copper Braided Wire | Finish | Electro-Tin Plated, Galvanic Tinned |
| Color | Gray | Includes | Installation Instruction Manual |
| Standards | cULus Listed, C22.2 No. 130-16, CEC 62-104 | Application | For Ceramic or Porcelain Tile, Granite, Marble, Natural Stone, Laminate/Engineered Wood Floors |
| UPC | 620713000168 |
Packages
| 1 - UNIT - 1 |
