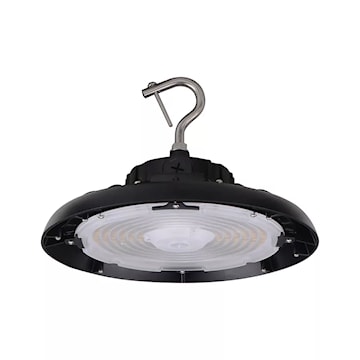

SIGNIFY 120-347V 80CRI 0823L Series Round HCY LED High Bay 0-10V Dimming, Black
cfihcy0823l8cstun3dimbk
SIGNIFY 120-347V 80CRI 0823L Series Round HCY LED High Bay 0-10V Dimming, Black
Price
$139.39
/ EA
Eco fees: $0.15
Inventory
Available for delivery
Available for pick up at
Abbotsford
Manufacturer:SIGNIFY
Manufacturer #:HCY0823L8CST-UN3-DIM-BK
Description
The Day-Brite / CFI HCY sealed high bay is an ideal choice where functional high bay lighting is needed with an aesthetic appeal. The round form factor lends itself to retail and institutional applications. Correlated
Specifications
| Brand Name | Signify | Sub Brand | DayBrite |
| Item Name | LED High Bay Fixture | Type | 0 - 10 V Dimmable, Round, Sealed |
| Voltage Rating | 120-347V | Fixture Wattage | 50 W |
| Lamp Type | LED | Housing Finish | Black |
| DLC | Y | DLC Code | S-N2X40V |
| DLC Class | Premium | DLC Version | 5.1 |
| Series | HCY | Average Life | 50,000 hrs. |
| Lumens | 8,000/14,000/23,000 Lumens | Color Temperature | 3500K/4000K/5000K |
| Color Rendering Index (CRI) | 80 | Lens Type | Clear Polycarbonate Lens |
| Enclosure Type | NEMA 4X | Housing Material | Die cast frame and driver containment housing |
| Color | Black | Width | 16-1/4 in |
| Height | 13-3/8 in | Temperature Rating | -30 to 50 °C |
| Includes | 6' cord provided for power connection and dimming connection. | Standards | cULus listed, RoHS compliant |
| Application | For Industrial | UPC | 190096197149 |
Packages
| 1 - UNIT - 1 | 42 - HALF SKID - 42 | 84 - SKID - 84 |
