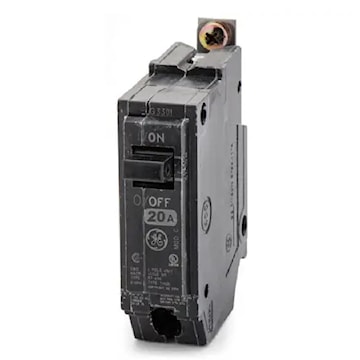

GESCAN THQB1120 20Amp 120/240VAC 10kA 1-Pole General Electric Q-Line THQB Series Molded Case Circuit Breaker

Molded case circuit breaker with 1-pole has quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication for safety as well as reliability. Miniature circuit breaker has a voltage rating of 120 VAC, 120/240 VAC and current rating of 20 A. It has an interrupting current rating of 10 kA at 120 VAC and 10 kA at 120/240 VAC. It is ideally designed to offer superior overload and short circuit protection. It accommodates copper wire of size 14 to 8 AWG and aluminium wire of size 12 to 8 AWG. Compact, thermal-magnetic breaker has bolt-on mounting and is designed for residential/commercial applications. It provides protection against ground fault and is suitable for reverse feed. It measures 1 x 2-3/8 x 3-9/32 inch. 5 mA trip sensitivity. LIG trip function. Standard continuous current rated. Fixed long time and fixed instantaneous. HACR rated special marking. Switch duty rated for fluorescent lighting loads.
