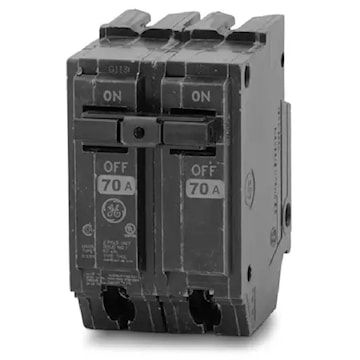

GESCAN THQL2170 70Amp 120/240VAC 10kA 2-Pole General Electric Q-Line THQL Series Molded Case Circuit Breaker
gedthql2170
GESCAN THQL2170 70Amp 120/240VAC 10kA 2-Pole General Electric Q-Line THQL Series Molded Case Circuit Breaker
Price
$148.12
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:INTERNAL BREAKER
Manufacturer #:THQL2170
Description
Feeder plug-in circuit breaker. Q-line circuit breaker is one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q-line used for connection to load centres and lighting panels. All Q-line circuit breakers feature quick-make or quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability.
Specifications
| Brand Name | Emerson | Item Name | Molded Case Circuit Breaker |
| Type | Type THQL, Internal Common Trip | Number of Poles | 2 |
| Interrupt Rating | 10 kA | Amperage Rating | 70 A |
| Voltage Rating | 120/240 VAC | Terminal Connection | Load Lug |
| Mounting Type | Plug-In | Conductor Size | 6-1/0 AWG Copper, 4-1/0 AWG Aluminum |
| Frame | Q-Line | Trip Type | Non-Interchangeable, Thermal Magnetic |
| Dimensions | 2 in W x 2-3/8 in D x 3-9/32 in H | Standards | UL File E11592, HACR Rated, GSA Compliance |
| Application | For Load Centers and Lighting Panels |
