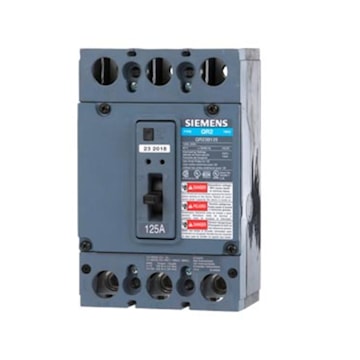

SIEMENS CANADA QR23B125 125Amp 240V 3-Pole Type QR Molded Case Circuit Breaker
sieqr23b125
SIEMENS CANADA QR23B125 125Amp 240V 3-Pole Type QR Molded Case Circuit Breaker
Price
$3,893.61
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:SIEMENS
Manufacturer #:QR23B125
Description
Siemens QR circuit breakers have a compact design for use in North American markets. Features include the ability to handle higher interrupting ratings and in-rush currents, as well as available UL listed field-installable internal accessories. QR circuit breakers can be implemented in load centers, panelboards, switchboards, modular metering and meter centers.
Specifications
| Brand Name | Siemens | Sub Brand | Molded Case Circuit Breakers |
| Item Name | Molded Case Circuit Breaker | Type | General Purpose |
| Number of Poles | 3 | Interrupt Rating | 10 kA |
| Amperage Rating | 125 A | Voltage Rating | 240 VAC |
| Terminal Connection | Load Lug | Frequency Rating | 50/60 Hz |
| Frame | QR | Trip Type | Thermal Magnetic |
| Temperature Rating | 40 °C | Standards | UL489/CSA-C22.2/NOM-003 |
| Application | For Circuit Protection | UPC | 804766136634 |
Packages
| 1 - UNIT - 1 |
