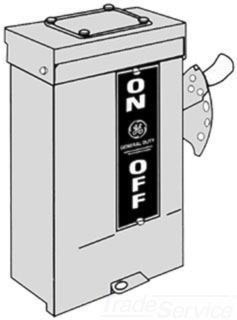

ABB TG4323R 3Pole 100Amp 240V NEMA3R GE Distribution Disconnect Heavy Duty Fusible Switch
gedtg4323r
ABB TG4323R 3Pole 100Amp 240V NEMA3R GE Distribution Disconnect Heavy Duty Fusible Switch
Price
$528.64
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:TG4323R
Description
General duty fusible switch. 100 A, 240 VAC, 3-pole. 4-wire system. NEMA type-3R (outdoor) enclosure. 10 to 1/10 AWG (copper/aluminium) wire range. 7 or 15 HP at 240 VAC (1 or 3-phase) NEC standard. 15 or 30 HP at 240 VAC (1 or 3-phase) time delay. 20 HP at 250 VDC. Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Meets or exceeds NEMA KS1 standard for enclosed switches type GD. Quick-make, quick-break mechanism (30 to 200 A). 60/75°C conductor rating.
Specifications
| Brand Name | GE | Sub Brand | Spec-Setter™ |
| Item Name | Safety Switch | Type | General-Duty, TG Type, Fusible |
| Voltage Rating | 240 V | Amperage Rating | 100 A |
| Phase | 1, 3 | Fuse Type | Class K, H, R |
| Number of Poles | 3 | Number of Wires | 4 |
| Wire Size | 10-1/0 AWG | Frequency Rating | 50/60 Hz |
| NEMA Rating | NEMA 3R | Dimensions | 9.3 in W x 5 in D x 21.1 in H |
| Standards | NEC Standard, UL Listed, cUL Listed, CSA C22.2 No. 4-04, WS-865C, NEMA KS1 | Application | For residential and light commercial applications |
| UPC | 783164008661 |
Packages
| 1 - UNIT - 1 |
