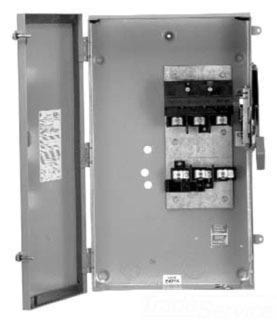

ABB TH4326 3Pole 600Amp 240V 4W Nema1 GE Distribution Heavy Duty Fused Switch
gedth4326
ABB TH4326 3Pole 600Amp 240V 4W Nema1 GE Distribution Heavy Duty Fused Switch
Price
$4,182.60
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:TH4326
Description
Heavy duty fusible switch. 600 A, 240 VAC, 3-pole. 4-wire system. NEMA type-1 (indoor) enclosure. (2) 4 to 500 KCMIL (copper/aluminium) wire range. 75 HP at 240 VAC (3-phase) NEC standard. 200 HP at 240 VAC (3-phase) time delay. 50 HP at 250 VDC. Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Meets or exceeds NEMA KS1 standard for enclosed switches type HD. Quick-make, quick-break mechanism. 60/75°C conductor rating. Full cover interlocks.
Specifications
| Brand Name | GE | Sub Brand | Spec-Setter™ |
| Item Name | Disconnect Safety Switch | Type | Fusible, Heavy-Duty |
| Voltage Rating | 240 VAC | Amperage Rating | 600 A |
| Phase | 3 | Load Rating | 15 hp at 240 VAC 1 PH, 25 hp at 240 VAC Standard, 60 hp at 40 VAC Time Delay, 40 hp at 250 VDC 3 PH |
| Fuse Type | Cartridge, Class R | Interrupt Rating | 200 kA |
| Number of Poles | 3 | Number of Wires | 4 |
| Wire Size | (2) 4 AWG - 500 kcmil Copper/Aluminum | Series/Model | TH |
| Frequency Rating | 50/60 Hz | Housing Material | Steel |
| Finish | Galvanized Powder Coated | Mounting Type | Surface |
| NEMA Rating | NEMA 1 | Temperature Rating | 60 - 75 °C |
| Dimensions | 23.6 in W x 50.9 in H x 14.4 in D | Application | For Indoor, Commercial and Industrial Applications |
| UPC | 783164009309 |
Packages
| 1 - UNIT - 1 |
