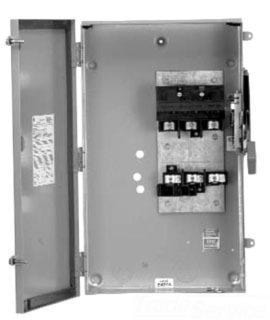

ABB TH3361R 30Amp 600Vac, 3-Pole, 3-Wire General Electric Heavy Duty Safety Switch, NEMA 3R (Outdoor)
gedth3361r
ABB TH3361R 30Amp 600Vac, 3-Pole, 3-Wire General Electric Heavy Duty Safety Switch, NEMA 3R (Outdoor)
Price
$636.67
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:TH3361R
Description
Heavy duty fusible switch. 30 A, 600 VAC, 3-pole. 3-wire system. NEMA type-3R (outdoor) enclosure. 12 to 2 AWG (copper/aluminium) wire range. 5 HP at 480 VAC, 3 or 7 HP at 600 VAC (1 or 3-phase) NEC standard. 7 or 15 HP at 480 VAC, 10 or 20 HP at 600 VAC (1 or 3-phase) time delay. 2 HP at 125 VDC. Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Meets or exceeds NEMA KS1 standard for enclosed switches type HD. Quick-make, quick-break mechanism. 60/75°C conductor rating. Full cover interlocks.
Specifications
| Brand Name | GE | Sub Brand | Spec-Setter™ |
| Item Name | Safety Switch | Type | Fusible, Heavy-Duty |
| Voltage Rating | 600 VAC | Amperage Rating | 30 A |
| Phase | 1/3 | Fuse Type | Cartridge, Class R |
| Number of Poles | 3 | Number of Wires | 3 |
| Wire Size | 12-2 AWG Copper/Aluminum | Series/Model | TH |
| Frequency Rating | 50/60 Hz | Mounting Type | 3-Point/Self-Leveling |
| NEMA Rating | NEMA 3R | Temperature Rating | 60/75 °C |
| Dimensions | 8.2 in W x 4 in D x 13.1 in H | Standards | Federal Specification WS-865C, UL Listed and cUL Listed (UL98 Enclosed Switches/CSA-C22.2 No. 4-04) |
| Application | For Commercial and Industrial Applications | UPC | 783164009088 |
Packages
| 1 - UNIT - 1 |
