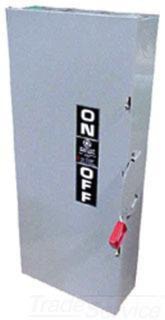

ABB TGN3324 2Pole 200Amp 240V NEMA 1 GE Distribution Disconnect Heavy Duty Normally Open Fusible Switch
gedtgn3324
ABB TGN3324 2Pole 200Amp 240V NEMA 1 GE Distribution Disconnect Heavy Duty Normally Open Fusible Switch
Price
$578.01
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:TGN3324
Description
General duty non-fusible switch. 200 A, 240 VAC, 3-pole. 3-wire system. NEMA type-1 (indoor) enclosure. 2 to 250 KCMIL (copper/aluminium) wire range. 15 HP at 240 VAC (1 or 3-phase) NEC standard. Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Meets or exceeds NEMA KS1 standard for enclosed switches type GD. Quick-make, quick-break mechanism (30 to 200 A). 60/75°C conductor rating.
Specifications
| Brand Name | GE | Sub Brand | Spec-Setter™ |
| Item Name | Safety Switch | Type | General-Duty, TG Type, Non-Fusible |
| Voltage Rating | 240 V | Amperage Rating | 200 A |
| Phase | 1, 3 | Fuse Type | Class K, H, R |
| Number of Poles | 3 | Number of Wires | 3 |
| Wire Size | 2 AWG - 250 kcmil | Frequency Rating | 50/60 Hz |
| NEMA Rating | NEMA 1 | Dimensions | 13.4 in W x 5.2 in D x 29.1 in H |
| Standards | NEC Standard, UL Listed, cUL Listed, CSA C22.2 No. 4-04, WS-865C, NEMA KS1 | Application | For residential and light commercial applications |
| UPC | 783164008845 |
Packages
| 1 - UNIT - 1 |
