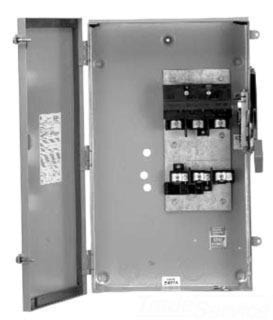

ABB THN3364 3Pole 200Amp 600V NEMA 1 GE Distribution Heavy Duty Nonfuse Switch, Stainless Steel
gedthn3364
ABB THN3364 3Pole 200Amp 600V NEMA 1 GE Distribution Heavy Duty Nonfuse Switch, Stainless Steel
Price
$744.91
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:THN3364
Description
Heavy duty non-fusible switch. 200 A, 600 VAC, 3-pole. 3-wire system. NEMA type-1 (indoor) enclosure. 2 to 250 KCMIL (copper/aluminium) wire range. 125 HP at 480 VAC, 150 HP at 600 VAC (3-phase) NEC standard. 40 HP at 250 VDC. Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Meets or exceeds NEMA KS1 standard for enclosed switches type HD. Quick-make, quick-break mechanism. 60/75°C conductor rating. Full cover interlocks.
Specifications
| Brand Name | GE | Sub Brand | Spec-Setter™ |
| Item Name | Safety Switch | Type | Non-Fusible, Heavy-Duty |
| Voltage Rating | 600 VAC | Amperage Rating | 200 A |
| Phase | 1/3 | Number of Poles | 3 |
| Number of Wires | 3 | Wire Size | 2 AWG - 250 kcmil Copper/Aluminum |
| Series/Model | TH | Frequency Rating | 50/60 Hz |
| Mounting Type | 3-Point/Self-Leveling | NEMA Rating | NEMA 1 |
| Temperature Rating | 60/75 °C | Dimensions | 13.3 in W x 5.1 in D x 31.5 in H |
| Standards | Federal Specification WS-865C, UL Listed and cUL Listed (UL98 Enclosed Switches/CSA-C22.2 No. 4-04) | Application | For Commercial and Industrial Applications |
| UPC | 783164133257 |
Packages
| 1 - UNIT - 1 |
