gedtlc410r1

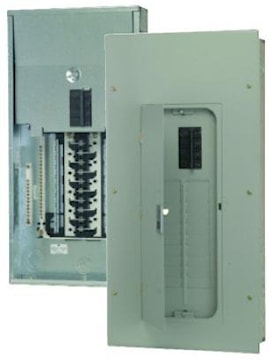

ABB TLC410R1 100Amp 120/240V 1-Phase, 4/8-CCT GE PowerMark™ Main Lug Loadcenter Only, 3R Outdoor Enclosure
gedtlc410r1
ABB TLC410R1 100Amp 120/240V 1-Phase, 4/8-CCT GE PowerMark™ Main Lug Loadcenter Only, 3R Outdoor Enclosure
Price
$114.54
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:TLC410R1
Description
UL Listed (Panelboards No. 67). 60°/75°C conductor rating. Suitable for use as service entrance equipment when Installed in accordance with the national electrical code. 22kAIC RMS symmetrical. 6-42 circuit devices.UL Listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down.
Specifications
| Brand Name | Emerson | Sub Brand | PowerMark |
| Item Name | Single Phase Main Lug Load Centers | Number of Circuits | 4 |
| Number of Spaces | 8 | Voltage Rating | 120/240 VAC |
| Amperage Rating | 100 A | Interrupt Rating | 22 kAIC |
| Phase | 1 | Mounting Type | Plug-On |
| Enclosure Type | Type 3R | Feed Location | Either |
| Temperature Rating | 60/75 °C | Dimensions | 7.71 in W x 4.2 in D x 10.31 in H |
| Includes | Door | Standards | UL, cUL Listed, CSA Certified |
| Application | For Service Entrance Equipment when Installed in Accordance with the CEC | UPC | 783164306279 |
Packages
| 1 - UNIT - 1 |
