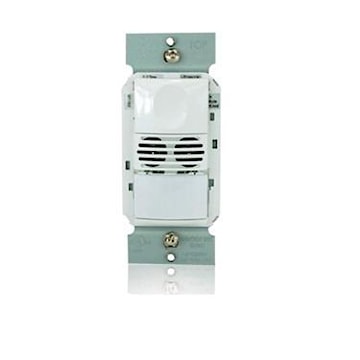

WATT STOPPER DSW-301-347-W 347V DSW-301 Dual Technology Wall Switch Occupancy Sensor, White
Description
The DSW-301 Dual Technology Wall Switch Occupancy Sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.FEATURES AND BENEFITS:- High sensitivity and dense coverage for exceptional performance- Allows multi-way control from one of up to four control locations- Color-matched lens and low profile for appealing design- Optional neutral connection with break off tab to expose neutral terminals120/277VAC and 347VAC models- Defaults to Manual-On operation for maximum energy savings
Specifications
Brand Name | WattStopper | Sub Brand | Wattstopper |
Item Name | Occupancy Sensor | Type | Wall Switch, Dual Technology |
Voltage Rating | 347 VAC | Amperage Rating | 4.3 A |
Sensor Type | Passive Infrared | Sensing Distance | 10.6 m Floor/Front, 2.2 m Side |
Color | White | Mounting Type | Surface |
Frequency Rating | 0 - 60 Hz | Maximum Load Capacity | 1500 W |
Material | Plastic | Dimensions | 44 mm W x 46 mm D x 69 mm H |
Mounting Height | 1.2 m | Includes | Hard Carrying Case, Instruction Manual, Mounting Clamp, 3 x AA 1.5 V Alkaline Batteries |
Standards | UL, cUL, FCC part 15, Complies with 2017 NEC requirements, RoHS | Application | For Commercial, Offices, Conference Rooms, Lunch/Break Rooms |
UPC | 754182935680 |
Packages
1 - UNIT - 1 | 20 - UNIT - 20 |
