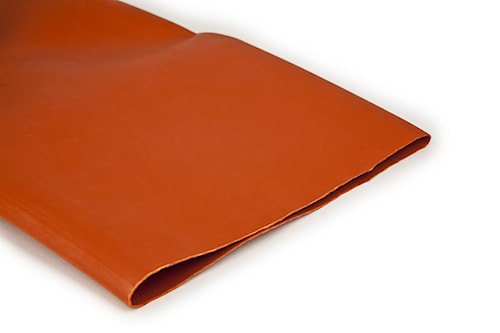

3M CANADA BBI-4A20 3M™ Bus Bar Heat Shrink Tubing BBI-4A-20

Price $28.95 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:3M CANADA
Manufacturer #:BBI-4A20
Documents Documents

Description

3M™ Bus Bar Heat Shrink Tubing BBI-A Series is designed for insulating rectangular, square, and round bus bar rated from 5 kV through 35 kV. It will also cover and insulate inline bolted connections of rectangular bus bars. It has high resistance to splitting, good solvent resistance, and excellent tracking resistance properties.

Specifications

Brand Name 3M Item Name Heat Shrink Tubing
Inner Diameter Expanded 4.35 in Wall Thickness Recovered 0.113 in
Length 20 ft Material Cross-Linked Polyolefin
Voltage Rating 15/25/5/8 kV Shrink Ratio 1.5:2
Temperature Rating -55 to 110 °C Color Red
For Use With 5.43 - 8.86 in 25 kV Bus Bar Standards ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
UPC 051135357286

Packages

20 - UNIT - (20)
