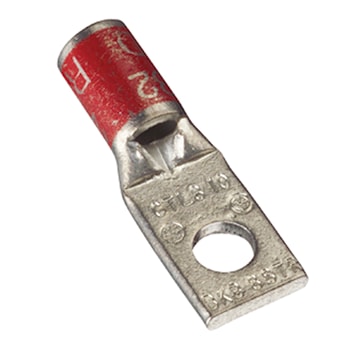

ABB CTL40-12 Blackburn® Compression Lug 1 Holes Copper 4/0 AWG Stranded 1/2 in Stud size
tabctl4012
ABB CTL40-12 Blackburn® Compression Lug 1 Holes Copper 4/0 AWG Stranded 1/2 in Stud size
Price
$21.1372
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB
Manufacturer #:CTL40-12
Description
For use with copper conductors: AWG stranded, flexible cable, welding cable and portable cord. Specially designed for industrial and building applications. Made of high-conductivity seamless copper tubing. Tin-plated for corrosion resistance. Specially chamfered barrel for ease of installation. Colour-coded for matching die identification. Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used. Short barrel connectors designed for regular duty applications. Ideal for confined areas.
Specifications
| Brand Name | ABB | Sub Brand | Blackburn® |
| Item Name | Compression Lug | Type | Standard Barrel |
| Conductor Size | 4/0 AWG Stranded | Number of Holes | 1 |
| Stud Size | 1/2 in | Barrel Length | 15/16 in |
| Tongue Size | 1-1/4 in L x 1-1/32 in W x 1/8 in T | Overall Length | 2-1/2 in |
| Color Code | Purple | Material | Copper |
| Series/Model | CTL | Voltage Rating | 35000 V |
| Barrel Type | Short | Tongue Type | Straight |
| Finish | Tin Plated | Standards | UL File Number E9809, CSA Certified |
| Application | For Copper Conductors | UPC | 783786131891 |
Packages
| 10 - UNIT - (10) |
