PANDUIT DNFR18-250FIB-L Pan-Term® DNFR18-250FIB-L Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50
pandnfr18250fibl
PANDUIT DNFR18-250FIB-L Pan-Term® DNFR18-250FIB-L Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50
Price
$1.3065
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:PANDUIT
Manufacturer #:DNFR18-250FIB-L
Description

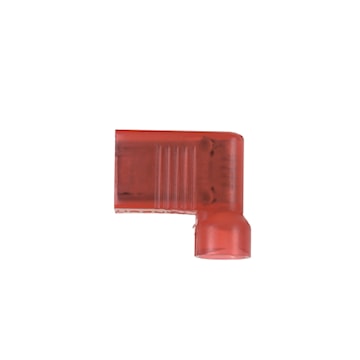

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Type | E1 Plus Solid State Relay | Width | 0.6 in |
| Voltage Rating | 600 V | Material | Brass |
| Finish | Tin Plated | Color | Amber,Green,Red,White |
| Barrel Type | Butted Seam | Temperature Rating | 221 °F |
| Standards | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 | UPC | 074983118038 |
Packages
| 250 - UNIT - (250) |
