cab10/4ac9075

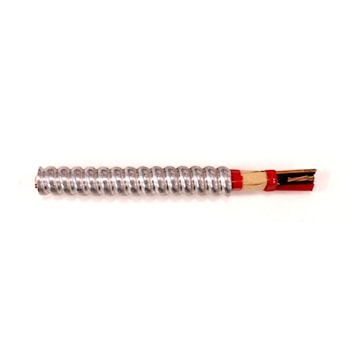

75mtr 10/4C 600V AC90 Aluminum Armoured Cable, Copper Conductor
cab10/4ac9075
75mtr 10/4C 600V AC90 Aluminum Armoured Cable, Copper Conductor
Price
$12.0404
/ M
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:SONECABLE
Manufacturer #:800007-075
Description
AC90 is a flexible interlocked aluminum armoured cable approved for use in open and concealed wiring in dry locations. All AC90 is CSA approved and manufactured with two, three, or four copper conductors insulated with RW90 cross-linked polyethylene rated at 600 volts from #14 to #2 AWG. The bonding conductor is bare copper. AC90 is a cost effective alternative to conduit wiring. AC90 eliminates the need for conduit, fittings and the labour associated with pulling in wire, threading and forming conduit. Multiconductor and special construction AC90 can be manufactured.
Specifications
| Brand Name | Northern Cables | Item Name | AC90 Cable |
| Type | Armored, Flexible, Interlocked | Wire Gauge Size | 10 AWG |
| Number of Conductors | 4 | Stranded/Solid | Solid |
| Length | 75 m | Conductor Material | Copper |
| Armor Material | Aluminum | Voltage Rating | 600 V |
| Outside Diameter | 0.64 in | Insulation Material | XLPE |
| Insulation Thickness | 0.03 in | Amperage Rating | 40 A |
| Color Code | Black/Blue/Red/White | Weight | 349 kg/km |
| Temperature Rating | -40 to 90 °C | Standards | CSA Certified in File Number 109933, CSA Standard C22.2 No. 51, No.38 and No.2256, NAFTA Compliant, RoHS Compliant, Flame Test Compliances CSA ST1 and FT-4 |
| Application | For Exposed and Concealed Wiring in Dry Locations, For Use in Ventilated, Non-Ventilated and Ladder-Type Cable Trays in Dry Locations |
Packages
| 75 - UNIT - 75 | 675 - SKID LAYER - 675 | 2025 - SKID - 2025 |
